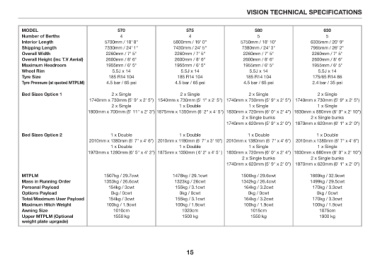

VISION TECHNICAL SPECIFICATIONS

MODEL 570 575 580 630
Number of Berths 4 4 5 5
Interior Length
Shipping Length 5700mm / 18' 8" 5800mm / 19' 0" 5750mm / 18' 10" 6335mm / 20' 9"
Overall Width 7330mm / 24' 1" 7430mm / 24' 5" 7380mm / 24' 3" 7965mm / 26' 2"
Overall Height (inc T.V Aerial) 2260mm / 7' 5" 2260mm / 7' 5" 2260mm / 7' 5" 2260mm / 7' 5"
Maximum Headroom 2600mm / 8' 6" 2600mm / 8' 6" 2600mm / 8' 6" 2600mm / 8' 6"
Wheel Rim 1955mm / 6' 5" 1955mm / 6' 5" 1955mm / 6' 5" 1955mm / 6' 5"
Tyre Size
Tyre Pressure (at quoted MTPLM) 5.5J x 14 5.5J x 14 5.5J x 14 5.5J x 14
185 R14 104 185 R14 104 185 R14 104 175/65 R14 86
4.5 bar / 65 psi 4.5 bar / 65 psi 4.5 bar / 65 psi 2.4 bar / 35 psi

Bed Sizes Option 1 2 x Single 2 x Single 2 x Single 2 x Single

1740mm x 730mm (5' 9" x 2' 5") 1540mm x 730mm (5' 1" x 2' 5") 1740mm x 730mm (5' 9" x 2' 5") 1740mm x 730mm (5' 9" x 2' 5")

2 x Single 1 x Double 1 x Single 1 x Single

1800mm x 700mm (5' 11" x 2' 3") 1875mm x 1350mm (6' 2" x 4' 5") 1830mm x 720mm (6' 0" x 2' 4") 1830mm x 880mm (6' 0" x 2' 10")

2 x Single bunks 2 x Single bunks

1740mm x 620mm (5' 9" x 2' 0") 1870mm x 620mm (6' 1" x 2' 0")

Bed Sizes Option 2 1 x Double 1 x Double 1 x Double 1 x Double

2010mm x 1380mm (6' 7" x 4' 6") 2010mm x 1180mm (6' 7" x 3' 10") 2010mm x 1380mm (6' 7" x 4' 6") 2010mm x 1380mm (6' 7" x 4' 6")

1 x Double 1 x Double 1 x Single 1 x Single

1970mm x 1280mm (6' 5" x 4' 2") 1875mm x 1350mm ( 6' 2" x 4' 5" ) 1830mm x 720mm (6' 0" x 2' 4") 1830mm x 880mm (6' 0" x 2' 10")

2 x Single bunks 2 x Single bunks

1740mm x 620mm (5' 9" x 2' 0") 1870mm x 620mm (6' 1" x 2' 0")

MTPLM 1507kg / 29.7cwt 1478kg / 29.1cwt 1506kg / 29.6cwt 1669kg / 32.9cwt
Mass in Running Order 1353kg / 26.6cwt 1323kg / 26cwt 1342kg / 26.4cwt 1499kg / 29.5cwt
Personal Payload 155kg / 3.1cwt
Options Payload 154kg / 3cwt 164kg / 3.2cwt 170kg / 3.3cwt
Total/Maximum User Payload 0kg / 0cwt 0kg / 0cwt 0kg / 0cwt 0kg / 0cwt
Maximum Hitch Weight 155kg / 3.1cwt
Awning Size 154kg / 3cwt 100kg / 1.9cwt 164kg / 3.2cwt 170kg / 3.3cwt
Upper MTPLM (Optional 100kg / 1.9cwt 100kg / 1.9cwt 100kg / 1.9cwt
weight plate uprgade) 1020cm
1010cm 1500 kg 1015cm 1075cm
1550 kg 1550 kg 1900 kg
