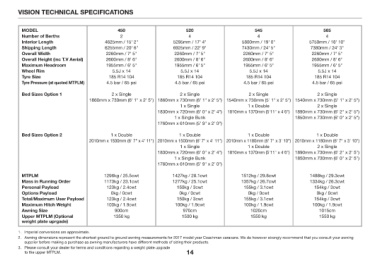

VISION TECHNICAL SPECIFICATIONS

MODEL 450 520 545 565
Number of Berths 2 4 4 4
Interior Length
Shipping Length 4625mm / 15' 2" 5295mm / 17' 4" 5800mm / 19' 0" 5750mm / 18' 10"
Overall Width 6255mm / 20' 6" 6925mm / 22' 9" 7430mm / 24' 5" 7380mm / 24' 3"
Overall Height (inc T.V Aerial) 2260mm / 7' 5" 2260mm / 7' 5" 2260mm / 7' 5" 2260mm / 7' 5"
Maximum Headroom 2600mm / 8' 6" 2600mm / 8' 6" 2600mm / 8' 6" 2600mm / 8' 6"
Wheel Rim 1955mm / 6' 5" 1955mm / 6' 5" 1955mm / 6' 5" 1955mm / 6' 5"
Tyre Size
Tyre Pressure (at quoted MTPLM) 5.5J x 14 5.5J x 14 5.5J x 14 5.5J x 14
185 R14 104 185 R14 104 185 R14 104 185 R14 104
4.5 bar / 65 psi 4.5 bar / 65 psi 4.5 bar / 65 psi 4.5 bar / 65 psi

Bed Sizes Option 1 2 x Single 2 x Single 2 x Single 2 x Single
1860mm x 730mm (6' 1" x 2' 5") 1860mm x 730mm (6' 1" x 2' 5") 1540mm x 730mm (5' 1" x 2' 5") 1540mm x 730mm (5' 1" x 2' 5")

1 x Single 1 x Double 2 x Single
1830mm x 720mm (6' 0" x 2' 4") 1810mm x 1370mm (5'11" x 4'6") 1890mm x 730mm (6' 2" x 2' 5")
1850mm x 730mm (6' 0" x 2' 5")
1 x Single Bunk
1760mm x 610mm (5' 9" x 2' 0")

Bed Sizes Option 2 1 x Double 1 x Double 1 x Double 1 x Double
2010mm x 1500mm (6' 7" x 4' 11") 2010mm x 1500mm (6' 7" x 4' 11") 2010mm x 1180mm (6' 7" x 3' 10") 2010mm x 1180mm (6' 7" x 3' 10")

1 x Single 1 x Double 2 x Single
1830mm x 720mm (6' 0" x 2' 4") 1810mm x 1370mm (5'11" x 4'6") 1890mm x 730mm (6' 2" x 2' 5")
1850mm x 730mm (6' 0" x 2' 5")
1 x Single Bunk
1760mm x 610mm (5' 9" x 2' 0")

MTPLM 1296kg / 25.5cwt 1427kg / 28.1cwt 1512kg / 29.8cwt 1488kg / 29.3cwt
Mass in Running Order 1173kg / 23.1cwt 1277kg / 25.1cwt 1357kg / 26.7cwt 1334kg / 26.3cwt
Personal Payload
Options Payload 123kg / 2.4cwt 150kg / 3cwt 155kg / 3.1cwt 154kg / 3cwt
Total/Maximum User Payload 0kg / 0cwt 0kg / 0cwt 0kg / 0cwt 0kg / 0cwt
Maximum Hitch Weight
Awning Size 123kg / 2.4cwt 150kg / 3cwt 155kg / 3.1cwt 154kg / 3cwt
Upper MTPLM (Optional 100kg / 1.9cwt 100kg / 1.9cwt 100kg / 1.9cwt 100kg / 1.9cwt
weight plate uprgade)
900cm 970cm 1020cm 1015cm
1350 kg 1500 kg 1550 kg 1550 kg

1. Imperial conversions are approximate.

2. Awning dimensions represent the shortest ground to ground awning measurements for 2017 model year Coachman caravans. We do however strongly recommend that you consult your awning
supplier before making a purchase as awning manufacturers have different methods of sizing their products.

3. Please consult your dealer for terms and conditions regarding a weight plate upgrade 14
to the upper MTPLM.
